Engineering Drawing (2nd Year) - Mechanical group of trades

ITI Engineering Drawing 2n Year Mechanical Trades Learn Topic Wise Online, Fitter, Turner, Machinist,
iti Engineering Drawing mechanical

ITI Engineering Drawing 2nd Year Mechanical Trades Learn Topic Wise Online, Fitter, Turner, Machinist, Machinist grinder, Mechanic machine tool maintenance, Operator advance machine tool, Mechanic motor vehicle, Mechanic agriculture machinery, Mechanic ref. & A.C, Central air conditioning plant, Mechanic mining machinery, Tool & die maker (Dies & Moulds), Tool & die maker (press tools, jigs & fixtures), Marine fitter, Aeronautical structure, Spinning technician, Textile wet processing technician, Weaving technician, Textile mechatronics, Painter general, Mechanic maintenance (chemical plant), Refractory technician. ग्रुप-1 (मेकेनिकल) में आने वाली इन सभी ट्रेड्स के लिए इंजनियरिंग ड्राइंग द्वितीय वर्ष का पेपर कॉमन होता है।

Engineering Drawing Second Year - Learn Topic Wise Online

Engineering Drawing 2nd Year Exam (सभी मैकेनिकल ट्रैड के लिए कॉमन) में कुल 50 अंको के 4 से 5 प्रश्न पूछे जाते है, अधिकतर प्रश्न निचे दिय गए टॉपिक्स में से ही होते है। अतः सभी टॉपिक्स के महत्वपूर्ण प्रश्न अभ्यास के लिए यहाँ पर उपलब्ध करवाय जा रहे है।
  1. Sketches of foundation bolts, nuts, locking devices
  2. Practice of standard rivet forms as per BIS & riveted joints
  3. Welded joints & pipe joints
  4. Assembly view of Vee blocks, bush & bearing, different types of coupling viz
  5. Sketch of shaft and pulley, belt, gear, gear drives

1. Sketches of foundation bolts, nuts, locking devices

Q1. Draw Sketch of Lewis Foundation bolt with 20mm diameterLewis Foundation bolt

Q2. Draw Sketch of Eye foundation bolt with 20mm diameter
Eye foundation bolt

Q3. Draw Sketch of Rag foundation bolt (d=20mm)
Rag foundation bolt

Q4. Draw Sketch the views of a hexagonal bolt M10 x 50.
hexagonal bolt M10 x 50

Q5. Draw Free hand Sketch of a Hexagonal nut (d=30mm)
Hexagonal nut

Q6. Draw Free hand Sketch of a Collared nut with 20 mm diameter

Collared nut

Q7. Draw Free hand Sketch of a Domed Cap nut with 20 mm diameter
Domed Cap nut

Q8. Draw free hand sketching of a Slotted nut
Slotted nut

Q9. Draw free hand sketching of a Castle nut
Castle nut
2. Practice of standard rivet forms as per BIS & riveted joints

Q1. Draw a snap head rivet suitable for joining plates of 25 mm thick.

snap head rivet

Q2.  Draw a pan head rivet of shank diameter 30 mm.
pan head rivet

Q3.  Draw a conical head rivet of shows diameter 25 mm.
conical head rivet

Q4.  Draw a countersunk head rivet of shank diameter 25 mm.
countersunk head rivet

Q5. Draw a single riveted lap joint, joining 25 mm thick plates. Show minimum 3 rivets.
single riveted lap joint

Q6. Draw a double riveted zig-zag lap joint, joining 35 mm thick plates.
double riveted zig-zag lap joint

Q7. Draw single riveted double strap butt joint (chain). Plate thickness 25 mm.
single riveted double strap butt joint

Q8. Draw a double riveted butt joint to join 25 mm thick plates, double cover plates by zig-zag riveting.
double riveted butt joint

3. Welded joints & pipe joints

welded joints

See Video Solution
different type of pipe Joints

different type of pipe fitting


4. Assembly view of Vee blocks, bush & bearing, different types of coupling viz

Q1. Draw the following three views of front view, side view, and top view of bearing assembly the diameter of shaft is 30 mm.


ANS. See Video Solution
bearing assembly orthographic view

Q2.  Assemble and draw the part drawing of a foot step bearing if d=50mm, Draw 1. Front view 2. Top view
drawing of a foot step bearing

Ans.
foot step bearing Front view Top view

Q3. Draw the part details of a split muff coupling of eight bolt type shown in below. Draw the front view, top view and assembly


Ans.



Q4. Draw the part details of a solid muff coupling given below. Assemble them and draw the sectional elevation and sectional view of the coupling

Ans. See Video Solution



Q5. Draw the given details of the Pedestal bearing and draw the following views of the assembly. 1. Front view, 2 Top view 3 Side view
Pedestal bearing

Ans.
Pedestal bearing orthographic view


5. Sketch of shaft and pulley, belt, gear, gear drives

Q1. Draw Free hand sketch of Following -
(A) Spur Gear (B) Bevel Gear
(C) Helical gear (D) Rack and pinion gear

Ans. See Video Solution

Spur Gear
Bevel Gear

Helical gear

Rack and pinion gear

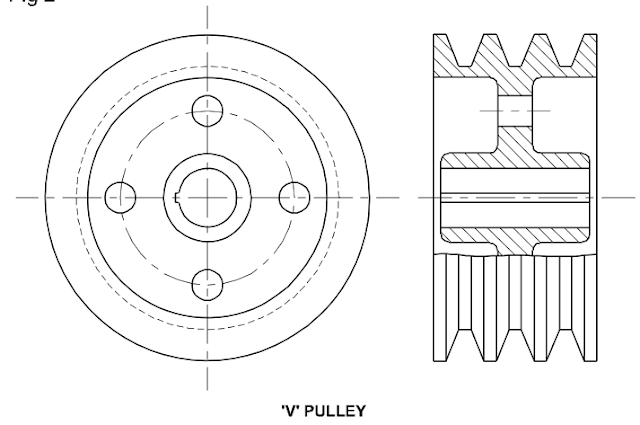

Q2. Draw Free hand sketch of V Pully


Ans.
V Pully

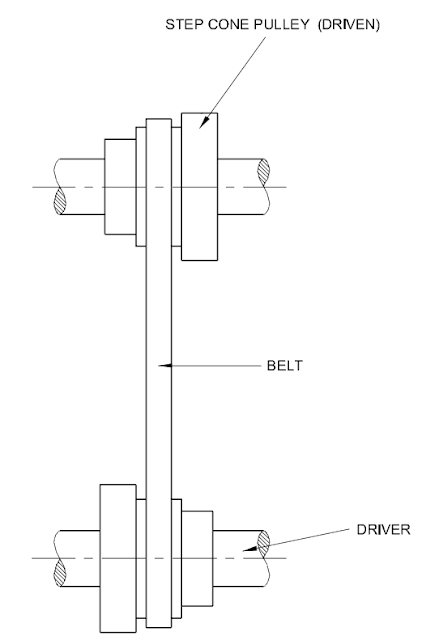

Q3. Draw Free hand sketch of  Stepped drives Pully

Ans.
Stepped drives Pully
